Special Steel Coal Fired Hot Water Furnace Coal Stoker Boiler 80.91% Thermal Efficiency

Yong Xing Boiler Group Co.,Ltd
Contact Now

Special Steel Coal Fired Hot Water Furnace Coal Stoker Boiler 80.91% Thermal Efficiency

  • 1
  • 2

Brand Name : YONGXING

Model Number : DZL/SZL

Certification : ISO9001,ISO14001,SGS,BV

Place of Origin : HENAN

MOQ : 1set

Price : negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : USD1000/SET

Delivery Time : 10-15days

Packaging Details : Nude packing,Package with Steel Box,or Wooden Box

Thermal efficiency : 80.91%

Fuel : Coal or Coal water slurry

Material : Special steel

Water Circulation : Natural Circulation

Type : DZL

Burner : Riello, Baltur,or Optional

Contact Now

Economical Coal Fired Steam Boilers and Mature Solution Coal Boiler Manufacturers

Products Feature

1. It adopts special materials such as threaded pipe and arched plate to make the operation of the boiler safer and the combustion efficiency higher.

2. The optimized furnace is used to make the fuel more adaptable.

3. Fully automatic control of fuel water supply, easy to operate.

4. All the welds are automatically welded, which can effectively improve the service life of the boiler. The plate adopts advanced pressing technology to solve the problem of plate cracking to the greatest extent.

5. Adopting advanced three-layer insulation technology, the refractory layer, the insulation layer and the sealing layer are respectively from the inside to the outside. The refractory layer is composed of refractory clay bricks, which improves the high temperature resistance, and the sealing layer adopts the overall seamless sealing. This kind of thermal insulation structure can minimize heat loss and improve the combustion efficiency of the boiler.

Auxiliary Technical Data

Parts Type
1. Chain Grate Travelling grates OR flake type chain grates
2. Induced Draft Fan GY1-18 4#Right 0°, Electromotor Y 132S-4B3
3. Forced Draft Fan 4-72-3.2A Right 315°, Electromotor Y 90L-2
4. Electric Pump JGGC2-8X13, Electromotor Y 90L-2
5. Govenor Stepless speed governor, Electromotor YCT112-4A
6. Ash Extractor Screw type, Electromotor Y 90S-6
7. Dust Collector Multi-tube XTD-1

Data sheet

Model

Item
DZL1-0.7-T
DZL1-1.0-T
DZL1-1.25-T
DZL2-0.7-T
DZL2-1.0-T
DZL2-1.25-T
DZL4-1.25-T
DZL4-1.6-T
DZL6-1.25-T
DZL6-1.6-T
DZL8-1.25-T
DZL8-1.6-T
DZL10-1.25
DZL10-1.6
Rated evaporation
capacity (t/h)
1 2 4 6 8 10
Working
pressure(Mpa)
0.7/1.0/1.25 0.7/1.0/1.25 1.25/1.6 1.25/1.6 1.25/1.6 1.25/1.6
Rated steam
temperature(℃)
170/184/194 170/184/194 194/204 194/204 194/204 194/204
Feed water
temperature(℃)
20 20 20 20 20 20
Effective area of
grate(m2)
2.22 4.1 5.85 7.95 9.75 10.77
Fuel consumption
(Kg/h)
200 400 800 1200 1600 2010
Exhaust flue gas
temperature(C)
150 150 150 150 150 150
Thermal Efficiency
(%)
82 82 82 82 82 82
Size(m) 5.1x 2.2x 3.0 5.5x 2.3x 3.3 6.6x 2.6x 3.6 8.2x 2.9x 3.8 8.1x 3.1x 3.8 7.7x 3.2x 3.6
8.6x 3.0x 2.6
Weight (t) 17 23 25 35 45 33
28

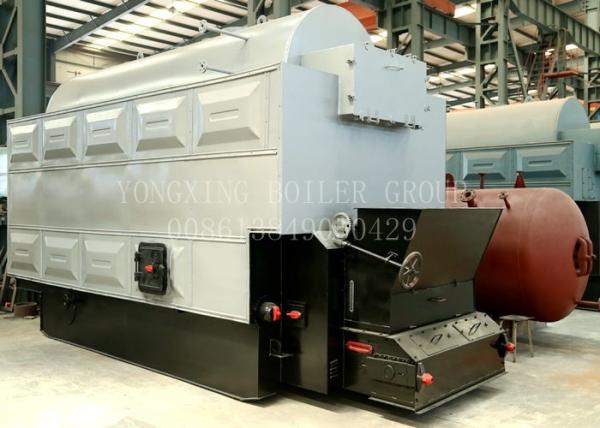

Special Steel Coal Fired Hot Water Furnace Coal Stoker Boiler 80.91% Thermal Efficiency

Brief Introduction

Our company is a high quality industrial boiler manufacturers. And the DZL series boilers produced are very popular. This type of equipment is equipped with water-cooling equipment on both sides, a rebar pipe is installed inside the drum, and a figure-shaped flue is arranged. The combustion equipment uses a light chain grate that can be frequency-controlled. The control system has all implemented the automation mode. The equipment has the characteristics of stable operation, safety and energy saving.

Welcome inquiry more specifications if u need

TWO PART ASSEMBLED BOILER
boiler model Unit SZL6-1.25/1.6-AII SZL8-1.25/1.6-AII SZL10-1.25/1.6-AII SZL12-1.25/1.6-AII SZL15-1.25/1.6-AII SZL20-1.25/1.6-AII SZL25-1.25/1.6-AII
capacity ton/h 6 8 10 12 15 20 25
rated pressure Mpa 12.5/1.6 1.25/1.6 1.25/1.6 1.25/1.6 1.25/1.6 1.25/1.6 1.25/1.6
rated steam temeperature 193/204 193/204 193/204 193/204 193/204 193/204 193/204
feed water temperature 105 105 105 105 105 105 105
radiation area m2 18.19 22.14 25.8 25.8 34.117 53.78 99.21
convection area m2 121.9 158.86 200.38 250.17 331.616 411.8 457.78
economizer area m2 53.13 104.64 130.8 174.4/261.1 117.72/117.2 212.4 476.16
valid grate area m2 7.55 9.34 10.98 12.78 16.24 20.84 24.76
applicable fuel COAL COAL COAL COAL COAL COAL COAL
exhaust gas temperature 165.78/169.85 161/165 160/162 158/150 156.7/159.4 153/159 152/156
design efficiency % 80.11/79.44 79.95/79.98 80.55/80.28 80.68/80.72 80.48/80.56 81.09/80.77 81.38/81.26
fuel consumption kg/h 863.28/874.78 1153.42/1161.38 1430.96/1442.74 1714.5/1721.8 2167.89/2164.7 2868.63/2884.7 3551/3556
max part size for delivery mm 7100*2800*3500
7300*2540*2330
7300*3000*3500
7400*2700*2330
7600*3200*3500
7700*2900*2330
7600*3200*3500
8500*2900*2330
7350*3373*3505
8904*3370*1100
7814.7*3573*3511
9439*3768*1100
8478*2600*2740
Bulk packing
